Siemens, LOGO!, I/O module - 4 Inputs 6ED1055-1MB00-0BA2
6ED1055-1MB00-0BA2
Siemens, LOGO!, I/O module - 4 Inputs, 4 Outputs, Relay, For Use With LOGO! 8, LOGO! 8.2, Computer Interface
Quantity
Product Details

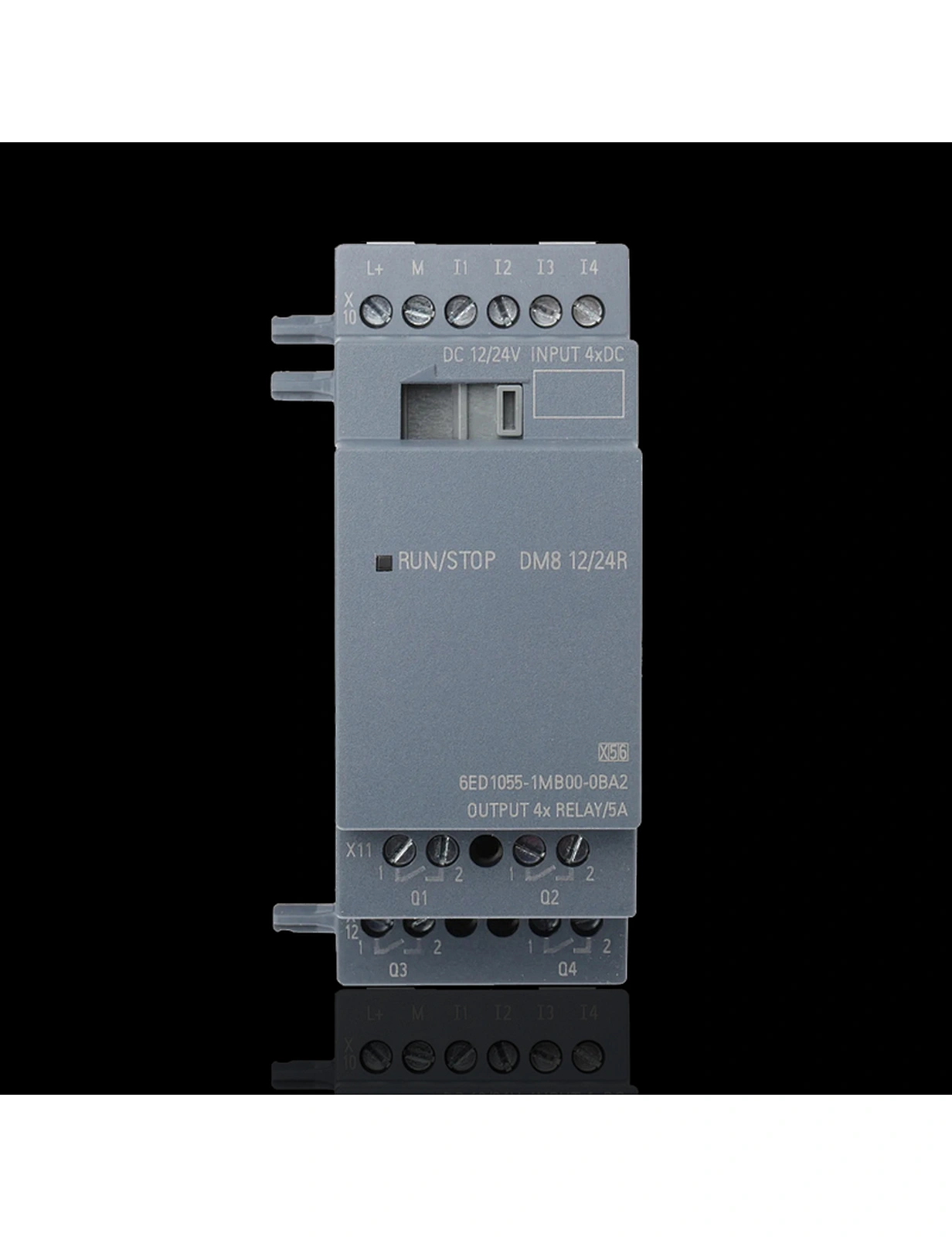

Siemens I/O Module For Use With LOGO! 8 And LOGO! 8.2 Devices, 90 (H) x 35.5 (W) x 58mm (D) - LOGO! Series - 6ED1055-1MB00-0BA2
Looking for a reliable communication link for data exchange between your PLCs and peripheral devices? Choose this I/O module from Siemens. The component has 4 input and 4 output ports used to control multiple devices. Its embedded computer programming interface lets you configure connected appliances, and a drag-and-drop setup makes the system simple to use. Thanks to a switching capacity of up to 1000W, this is a practical choice for high-power applications. An IP20 rating indicates it's touch-proof and can withstand dust and objects larger than 12mm in size. It's commonly used in industrial data logs to store sensor and switch parameters.
• DIN rail mounting style is simple and tool-free, saving time and effort
• 24V DC voltage for use in low-voltage applications
• Broad operating temperature range of 0°C to +55°C for use in challenging settings
Specifications
| Attribute | Value |
| For Use With | LOGO! 8, LOGO! 8.2 |
| Manufacturer Series | LOGO! |
| Number of Inputs | 4 |
| Output Type | Relay |
| Number of Digital Inputs | 4 |
| Input Type | Digital |
| Number of Digital Outputs | 4 |
| Supply Voltage | 12 → 24 V dc |
| Number of Outputs | 4 |
| Program Capacity | 31 x 31 Blocks |
| Programming Interface | Computer |
| Mounting Type | DIN Rail |
| Width | 35.5mm |
| Length | 90mm |
| Maximum Operating Temperature | +55°C |
| Output Current | 5 A |
| Dimensions | 90 x 35.5 x 58 mm |
| Standards Met | CE, CSA, FM |
| Depth | 58mm |
| Minimum Operating Temperature | 0°C |
